OEM sheet metal fabrication

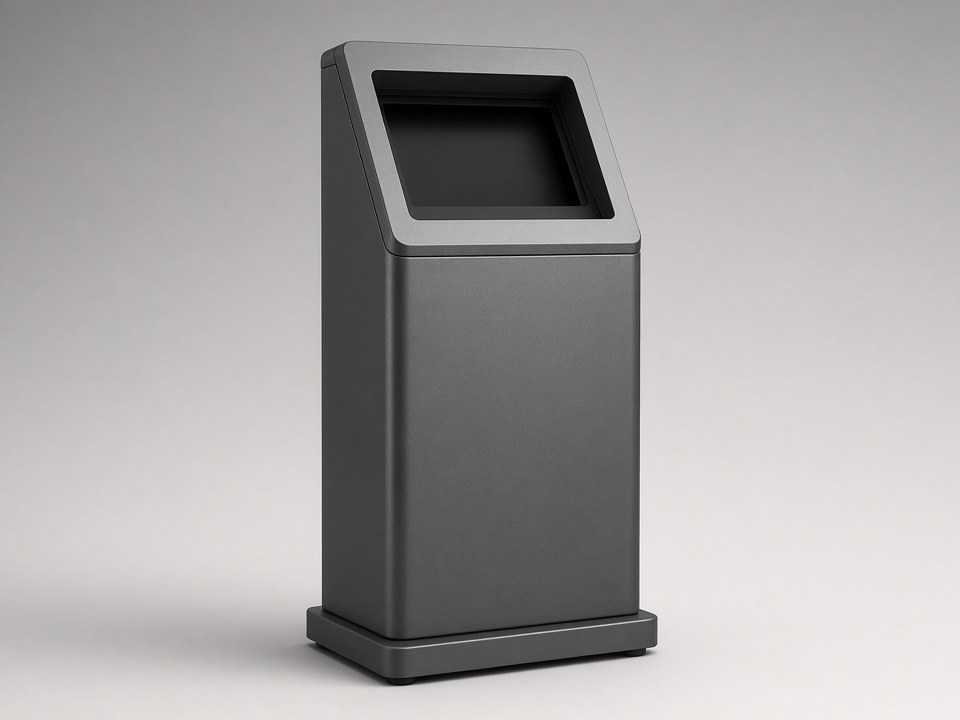

Custom Metal Kiosk & Terminal Housings
Enclosuremfg manufactures custom metal housings for self-service banking, interactive retail displays, and unattended vending systems. From high-visibility exterior panels to precision-fitted internal brackets, we support OEM programs from design review through finished assembly.
5
Engineering team members
6
QA/QC specialists
2500 × 6000 mm
In-house coating line
A coordinated enclosure, inside and out
Plan the exterior finish, close-fitting joints, and device mounting features as one manufacturable assembly.
Made for visible, serviceable equipment
Built around the product experience
Kiosk housings are protective structures and part of the user experience. Large panels need a consistent finish, joints should look intentional, and internal devices need secure, serviceable mounting points.
Self-service banking
ATM surrounds, transaction terminals, cash-handling equipment housings, and service-access panels.
Interactive retail
Mall advertising displays, information kiosks, ticketing units, and customer-engagement terminals.
Unattended vending
Payment interfaces, product-selection terminals, access panels, and integrated machine covers.
From CAD review to finished panels
Integrated fabrication for complex kiosk assemblies
Our engineers review 3D CAD and drawings for bend allowances, assembly access, hardware locations, and potential interference before production. DFM feedback and sheet metal unfolding support are available where needed.
Cut and form
Three fiber laser machines, including 12 kW and 6 kW systems, plus five CNC press brakes across multiple tonnage levels.
Add hardware and features
Automatic insertion for captive nuts, studs, and standoffs, with servo and conventional drilling and tapping systems.
Weld and prepare
Laser, MIG, and TIG welding; large assembly platforms; deburring, weld blending, and stainless steel brushing as specified.
Finish in-house
An in-house 2500 × 6000 mm powder coating and curing line accommodates many large panels and structural assemblies.
Keeping these steps under one roof helps reduce handoffs between fabricators, coaters, and assembly suppliers, while giving production and QC teams a clearer view of schedule and process consistency.
Exterior finish
Two-tone coating for high-visibility panels
Large color-blocked surfaces demand careful control of panel size, edge geometry, masking boundaries, handling, and curing. Define the coating plan alongside the panel design, including color references, boundary locations, gloss or texture, and keep-out areas.
For the most consistent outcome, evaluate a representative sample or first article before releasing a full batch. This aligns both teams on color, finish, masking boundaries, and acceptable cosmetic criteria.
Design for a refined fit
Micro-gap assembly takes whole-process planning
Cut accuracy is only one factor. Bend allowance, springback, weld sequence, fixture design, coating build, and final assembly all affect adjoining panel gaps. Low-heat-input laser welding is available for suitable joints where limiting visible distortion matters.
- 01Share intended gap dimensions, datums, and critical viewing areas.
- 02Identify restrictions on post-coating adjustment and access requirements.
- 03Document final acceptance criteria in the drawing package or approved inspection plan.
Internal integration
Precision brackets for scanners, printers, and electronics
Custom sheet metal supports hold devices in position while allowing for assembly, access, and servicing. Brackets can be developed from customer-supplied 3D models, drawings, or a defined installation envelope.
Formed features, slots, holes, captive hardware, and tapped locations can be incorporated to suit the assembly. Design review checks mounting access and possible interference with nearby panels or devices.
Components we can design around
- Barcode and document scanners
- Receipt, ticket, or label printers
- Touch displays and payment modules
- Control boards and power supplies
- Cable guides and mounting hardware
- Service doors, access panels, and removable trays
To support a complete design, provide component models where available, connector locations, cable clearances, fastener preferences, and service-removal requirements.
Program fit
Match the process to the enclosure requirements
The right manufacturing route depends on the visible surface, structure, installation environment, and batch plan.
Typical work suits high-mix, low-to-medium volume production, including batches of approximately 10 to 500 units, as well as recurring supply programs. Final quantities and timing depend on design maturity, finish requirements, and assembly scope.
Quality assurance
Checks across the production route
Our 6-person QA/QC team supports a closed-loop process from incoming material verification through manufacturing and shipment.
Production characteristics
Inspection can focus on formed dimensions, hardware placement, weld appearance, panel fit, coating condition, and overall assembly.
First articles and repeat orders
First-article inspection checks parts against approved drawings and finish expectations. Agreed inspection points help maintain repeat-batch consistency.
Include any measurement reports, cosmetic standards, labeling, or packaging requirements with your RFQ.
Start an OEM conversation
Request a kiosk housing quote
Send Enclosuremfg your drawings or 3D files for a manufacturing review and quotation. Our engineering team can identify questions around forming, joints, hardware, coating, and assembly before production begins.
Include these details where available
- Enclosure dimensions, materials, and sheet thicknesses
- CAD models and controlled drawings, including critical dimensions
- Required colors, finish appearance, and two-tone boundary details
- Scanner, printer, display, and other internal component models
- Target batch size, annual demand, and expected delivery schedule
- Inspection, labeling, packaging, or assembly requirements
Email: info@enclosuremfg.com
Company address: Building 4, Kuiqing Road, Qingxi Town, Dongguan City, Guangdong Province
